Product details
Product information

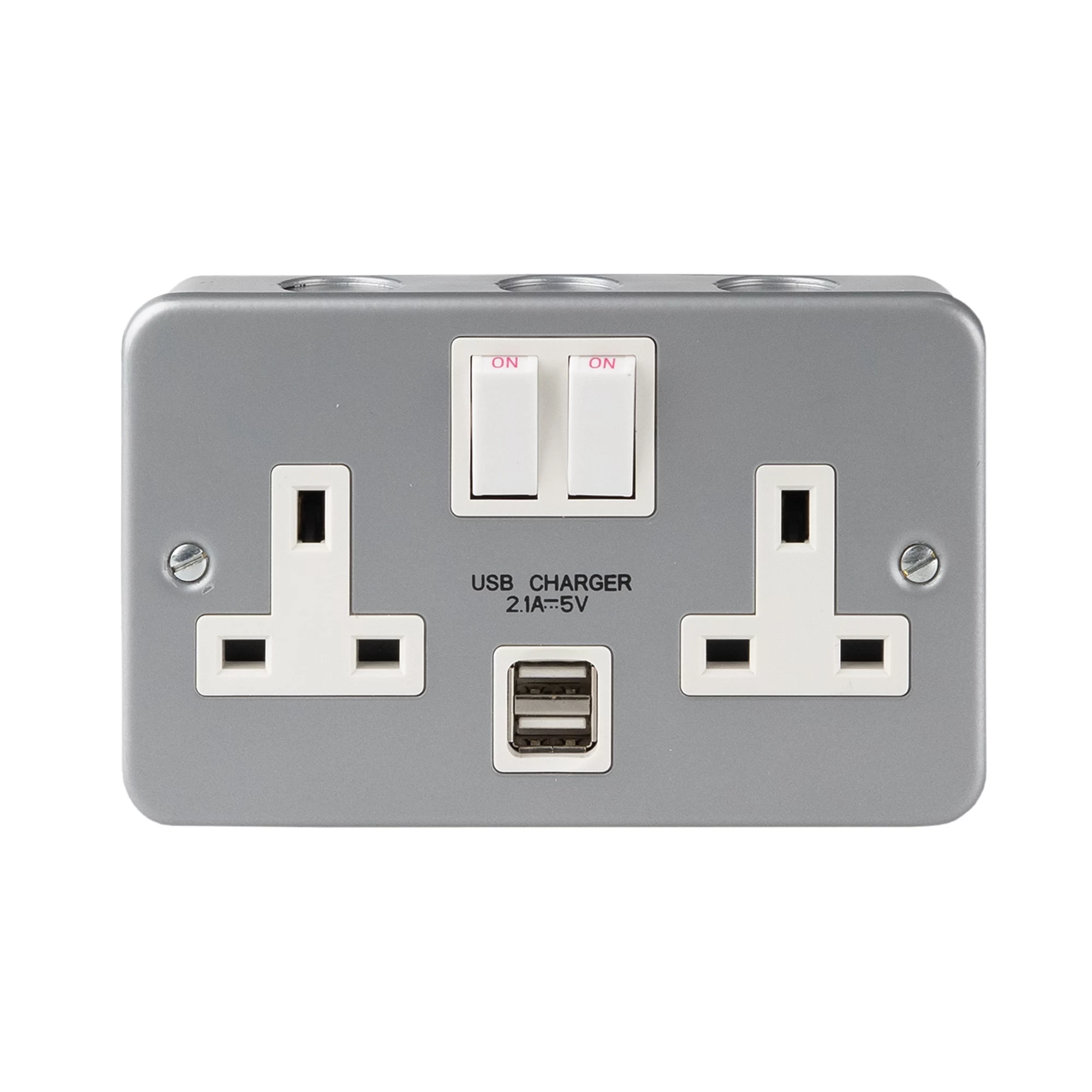

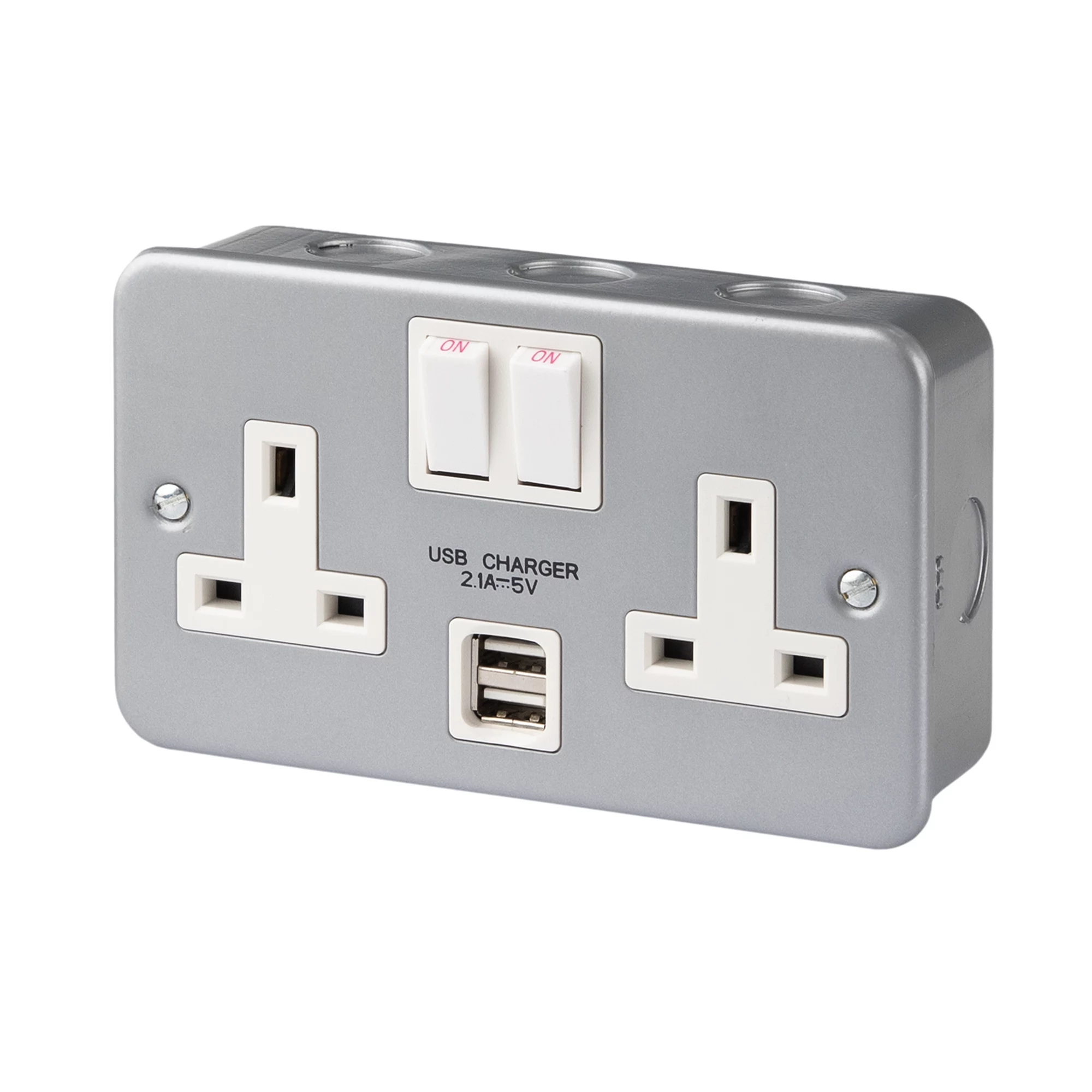

Double socket with USB with white finish and white insert.
- Fittings & fixings included
- Terminals accept 3 x 2.5mm² or 2 x 4mm² cables
- USB type: Type A
- 2 years Guarantee
Features and benefits
- Raised rounded profile
- Screwed faceplate
- Large capacity easy to wire terminals
- Type A USB

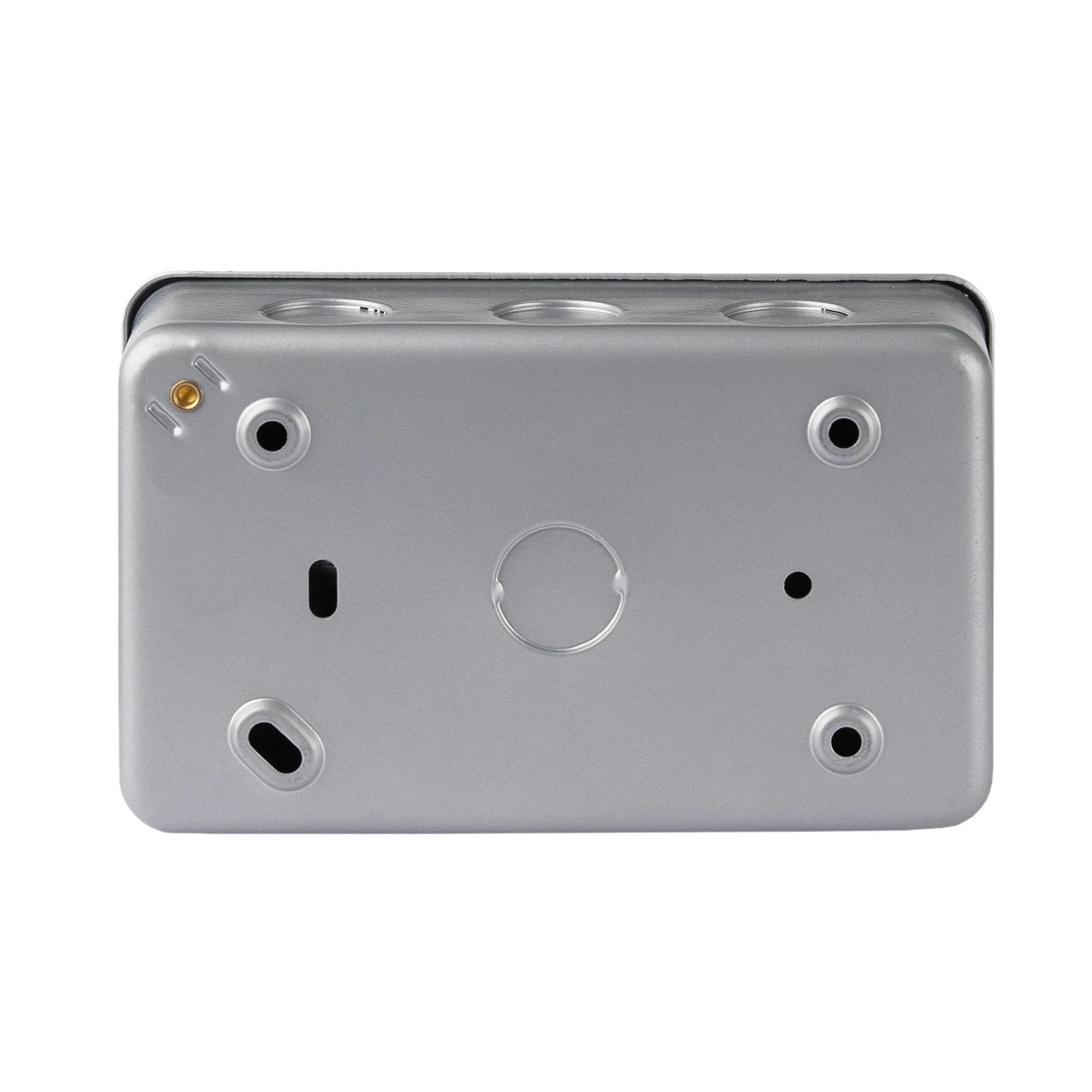

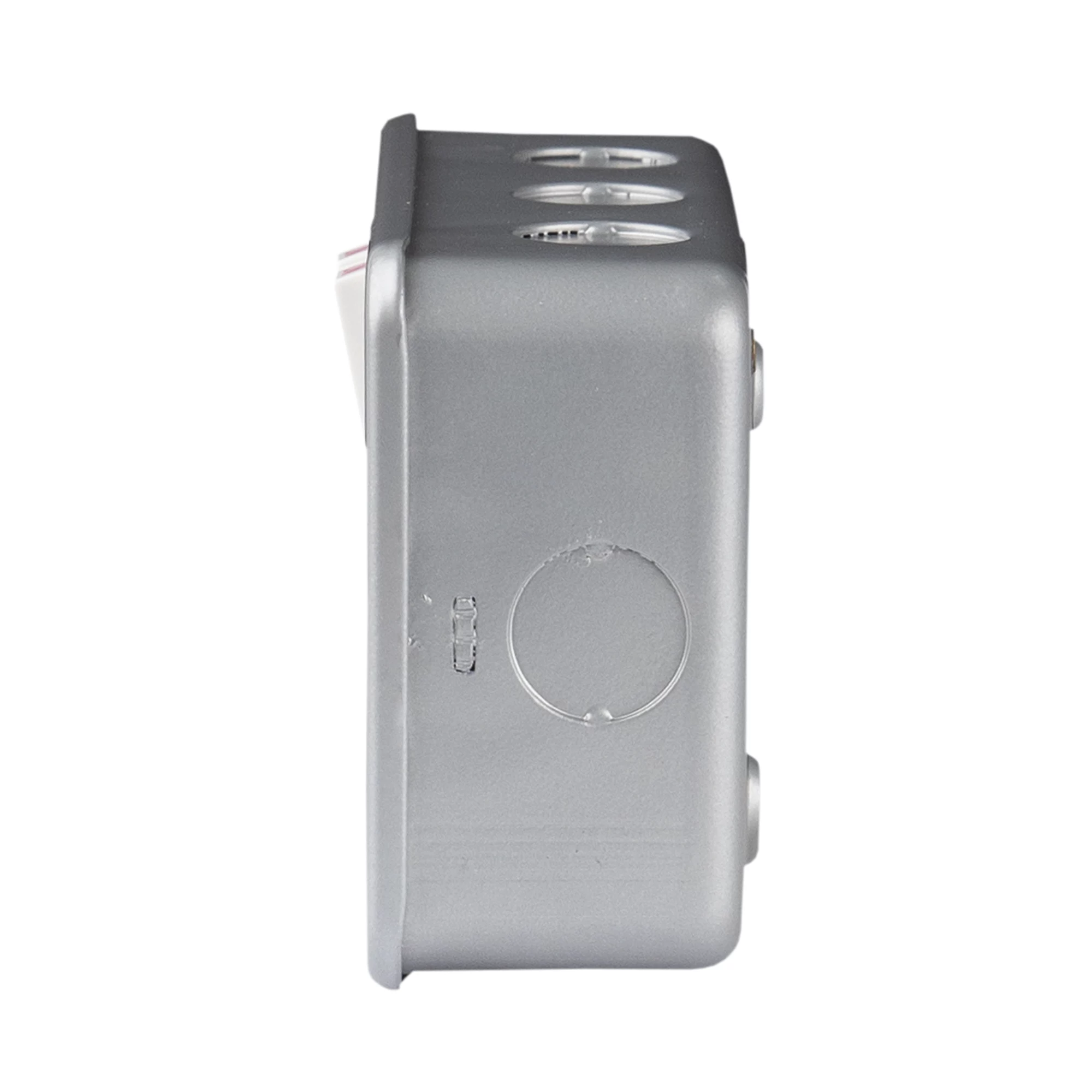

- Side & base knockouts
- Powder-coated finish
- Mechanical inboard rocker switches
- Concealed fittings
- For your safety, electrical products must be installed in accordance with local building regulations. If in any doubt, or where required by the law, consult a competent person who is registered with an electrical self-certification scheme.
Specifications
| Amp rating | 13A |
|---|---|
| CE marked | CE marked |
| Insert colour | White |
| IP rating | IP20 |
| Location | Indoor |
| Material | Metal |
| Minimum box depth required | 25mm |
| Model name/number | 2972M/USB |
| Mounting type | Wall-mounted |
| Number of earth terminals | 2 |
| Number of gangs | 2 |
| Number of poles | 2 |
| Number of sockets | 2 |
| Number of USB outlets | 2 |
| Power socket type | Double |
| Power voltage supply | 250V |
| Product depth | 45mm |
| Product width | 86mm |
| Switch/socket profile | Raised |
| Screwed/screwless | Screwed |
| Switched/unswitched | Switched |
| Switches & sockets type | Socket with USB |
| USB maximum current | 2.1A |
| USB output | Shared |
| USB type | Type A |
| USB voltage | 5V |
| Product code | 5052931557523 |
