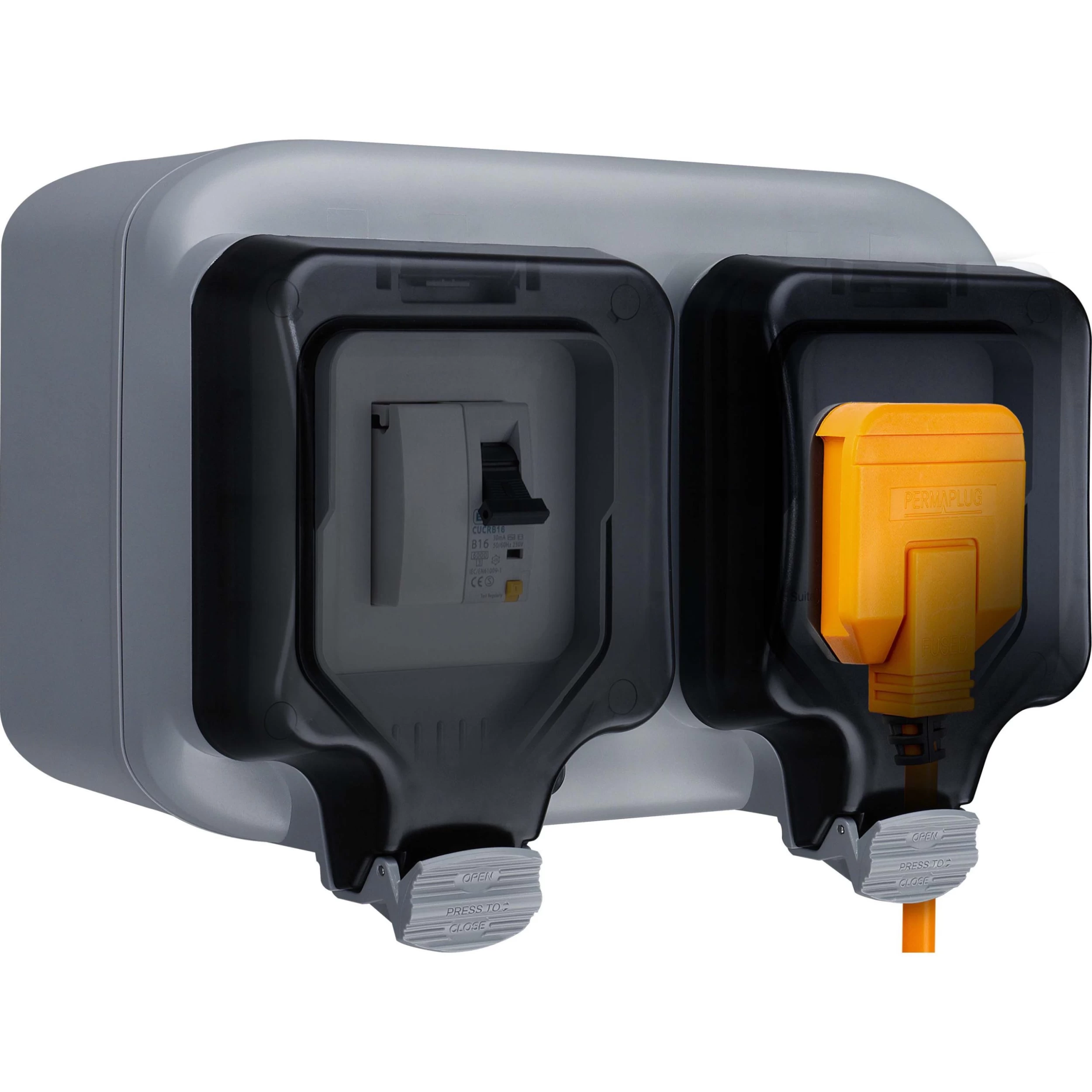

Masterplug Waterproof 13A Mains-powered RCBO Protected Outdoor Socket
Original price was: $50.00.$35.00Current price is: $35.00.
- Efficient and effective customer service, online.
- Quality You Can Trust
- Buy quality, buy with us.
- Buy Quality, Live Better
Product details
Product information
Electric vehicle charging outlet for Mode 2 charging. 13A socket with RCBO protection for prolonged charging. Robust IP66 housing protects in the most arduous conditions.
- Manufacturer guarantee: 1 year
- Fitting type: Semi-flush
- Fittings & fixings not included
- Charging speed: Slow
- 1 year Guarantee
Features and benefits
- 3 Pin UK outdoor socket with RCBO safety protection
- Fitted with 16A DP RCBO Type A for added protection for prolonged charging
- 2.3kW Charging via UK 3 pin socket
- Suitable for use an outdoor power socket or facilitate Mode 2 EV charging
- IP66 Weather and dust proof enclosure
- Seals plug when in use
Specifications
| Acquisition CE marked | CE marked |
|---|---|
| Amp rating | 13A |
| Breaking capacity | 10kA |
| Cable capacity | 25mm |
| Colour | Grey |
| Finish | Matt |
| Fitting type | Surface-mounted |
| Indicator | Without indicator |
| IP rating | IPX6 |
| Knockout position | Side knockout |
| Knockout size | 20mm |
| Location | Outdoor |
| Material | Polycarbonate (PC) |
| Model name/number | EVH132S1SPA-MP |
| Mounting type | Wall-mounted |
| Number of gangs | 1 |
| Number of knockouts | 7 |
| Power source connection type | 3-pin plug |
| Power voltage supply | Mains fed |
| Product depth | 125mm |
| Product height | 180mm |
| Product weight | 1g |
| Product width | 250mm |
| Power source | Mains-powered |
| Rated short circuit current | 10kA |
| Resistant to water | Waterproof |
| Switch/socket profile | Raised |
| Switched/unswitched | Switched |
| Switches & sockets type | Plug socket |
| Terminal capacity | Terminals accept up to 4mm² cable |
| Trip curve type | B curve: 3.2 – 4.8 times amp rating for UL489 & UL1077 (3 – 5 times amp rating for IEC) |
| Trip current | 0.03A |
| Terminal description | Top access backed-out captive terminal screws |
| Weatherproof | Weatherproof |
| UKCA marked | UKCA marked |
| Product code | 5015056640938 |
